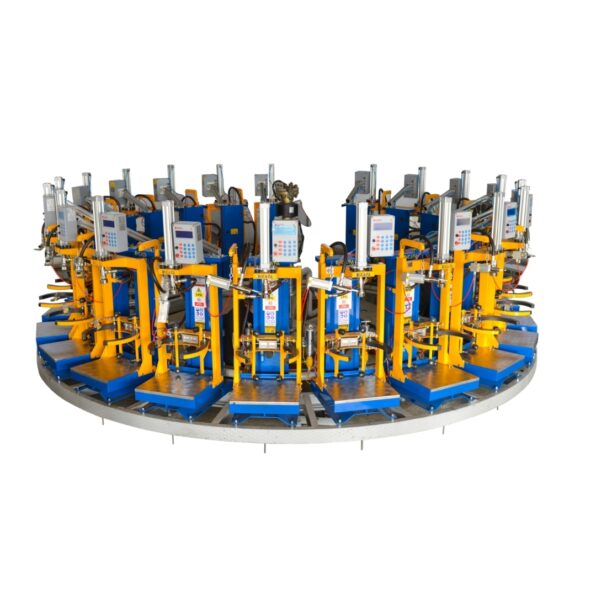

Carousel Filling System

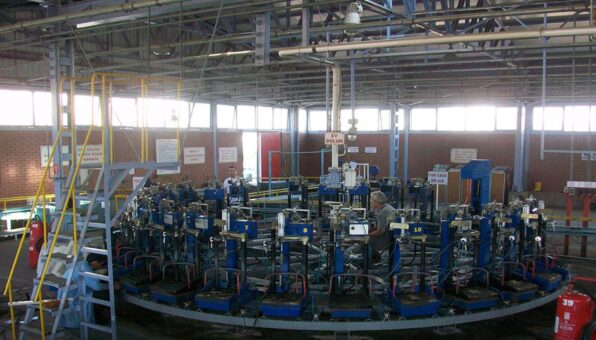

In the carousel type filling system, the filling machines are mounted on top of a rotating platform which is called (Carousel). The carousel system has one entrance for receiving the empty cylinders and one exit and returning the full cylinders to the system. As the cylinders are being filled while rotating with the carousel it gives the system higher efficiency and productivity.

High filling capacity.
Low manpower required for operation.
Heavy duty and minimum maintenance requirement.
Low installation time.

System details:
Can be manufactured to suit any type of cylinders.
Can be manufactured starting from 9 filling positions up to 36 filling positions.
Firm and rigid main structure for higher filling accuracy.
Adjustable supporting wheels to ensure the rotation stability of the carousel.
Can work with both mechanical and digital filling machines.
Rotation speed can be adjusted within a range between 60 to 120 second per rotation.
