Cylinder Body Sleeve Shrink Unit

The cylinder body sleeve shrink unit is used for domestic and camping gas cylinders when the customer wants to add branding. The branding sleeve, made of a heat-sensitive material, is placed around the cylinder. The cylinder then passes through a steam tunnel. The steam, used as a heat source, heats the sleeve, which shrinks and conforms perfectly to the shape of the cylinder.

Details

The machine tunnel is made of or lined with a water-resistant material.

The steam tunnel includes all the necessary steam distribution pipes and nozzles.

The cylinder body sleeve shrinking machine is mounted in-line.

It can be manufactured according to the cylinder dimensions.

Advantages

Improves brand visibility on cylinders.

Allows cylinders to be used as advertising space for the company.

Reduces the frequency of repainting thanks to the protection offered by the sleeve.

The machine is easy to operate.

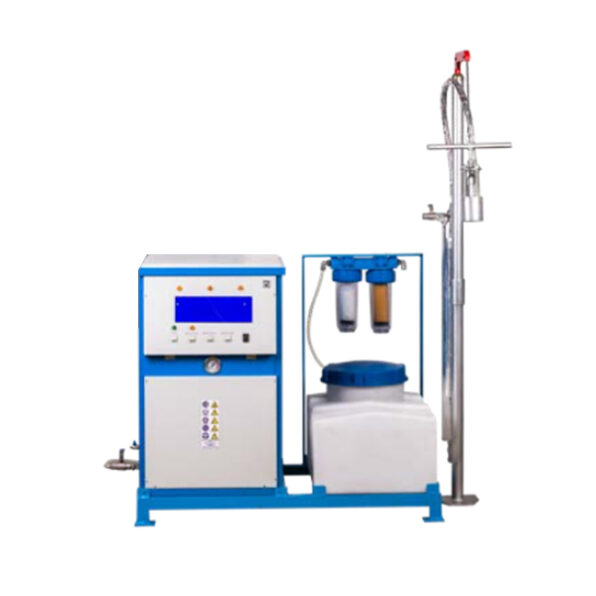

MANUAL VALVE SLEEVE SHRINK MACHINE

ıs used to cover the valve part of the fılled lpg cylınder wıth a heat sensıtıve fılm usıng the steam generated from the steam unıte (steam generator) ın a fast and effıcıent way. before coverıng the.

Details
Suitable for household and industrial cylinders.
Self-closing steam head.
Easy setup and operating
Suitable Steam Head for each valve type.
Working temperature from +2 0C To 57 0C
Electricity 380V/22
Thermostat limit 150 0C
Steam pressure 3 – 4 bar
Water tank capacity 100 L (or according to customer preferences

Advantages
Sealing cylinders after filling to ensure the safety.
Put the brand name on the cylinder valve.

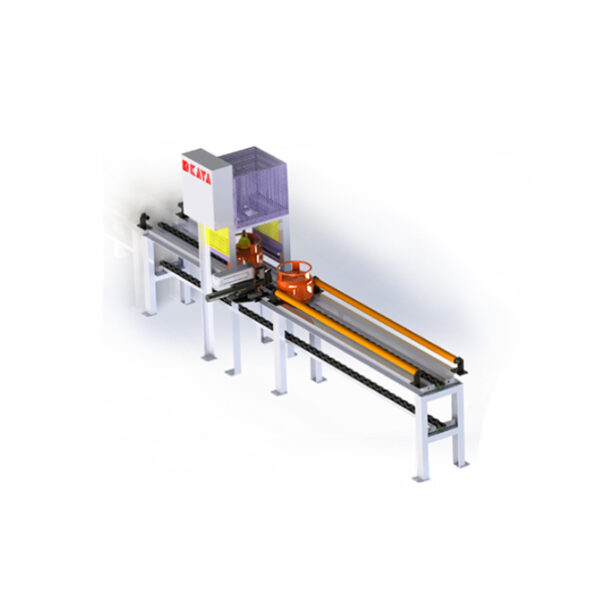

VALVE PLUG FIXING MACHINE

for fılled and ınspected cylınders valve plug fıxıng machıne ıs used to fıx the valve plug automatıcally. thıs machıne ıs mounted onlıne when the cylınder passes under ıt ıs automatıcally fıx the plug usıng an pneumatıc mechanısm.

Advantages
Prevent the operator of using normal hammer which can cause spark.
Fast and efficient.
No need to stop the cylinders.

Details
Painted steel structure.
Pneumatic powered and controlled.
Changeable fixing head.
Mounted online.
Fully automatic.

GAS TRANSFER UNIT

our gas transfer unıte ıs used to evacuate the defected cylınders and send lpg back to statıon’s maın tank. our machıne ıs capable to evacuate lpg cylınder wıthın 3 mınutes.

Details
Pneumatic powered and controlled.
Designed according to customer requirements.
Gas flow can be observed using check lens.
Working temperature – 10 C 0 / + 50 C 0
Working air pressure 05 ≈ 07 Bar
MAX. Gas flow rate 26 LT /min
Outer dimensions 60 x 140 x 95 (cm)
Working gas pressure 1 – 40 (Bar)

VALVE CHANGING MACHINE

valve changıng machıne ıs capable to loosen lpg cylınders valves whıch suffer from any malfunctıon whıch causıng leakage or any other problem and help ın tıghtenıng valves also.

Advantages
Safe to use.
Has a strong vise to firmly hold the cylinder during changing process.
Can be produced in manual or half automatic versions.
Comes with different heats for different valves.

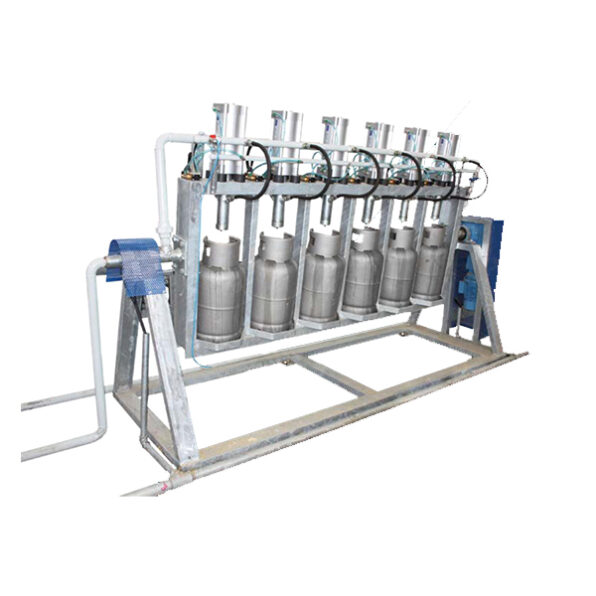

HYDROSTATIC TEST UNIT

the hydrostatıc test unıt ıs desıgned and manufactured for the purpose of determınıng whether the lpg cylınders are wıthın safety lımıts or not. by fıll the lpg cylınders wıth hıgh pressure water. just safe cylınders passes the test

Details
Testing pressure 30 bar.
Manual and automatic mode.
Cylinder test rakes has 6 or 12 cylinder.
Special design for water tanks.
Adjustable water pressure.
Water pumps high pressure/low pressure.
Replaceable cylinder’s testing heads.
For industrial cylinders rakes can be adjusted.
Suitable pipes for the system.
Adjustable testing time.
The testing unit rakes are manufactured according to Cylinder’s diameter.

Hoop Straightening

Kaya Top and Foot Hoop Straighteners are designed for the quick, precise, and safe repair of damaged hoods and foot rings on LPG cylinders. • High-value, aesthetically pleasing cylinders

• Prevent accumulation of damaged cylinders in the filling area

• Prevent production stoppages and failures due to damaged hoods and foot rings

• Ex-proof equipment for direct installation in the filling and repair room

• Delivered ready to use

Benefits

• Easy operation

• Semi-automatic process

• Integrated safety device for maximum operator safety

• Complete delivery including hydraulic unit

• Quick and easy changing of straightening tools

Applications

• Hood and foot ring straighteners can be supplied as separate machines or together

• Supply of custom-made straightening tools for any hood and foot ring diameter

• Each straightening tool can be used for top hoods and foot rings. • Supply of additional straightening tools

• Hydraulic unit for operating one machine at a time or both machines simultaneously
