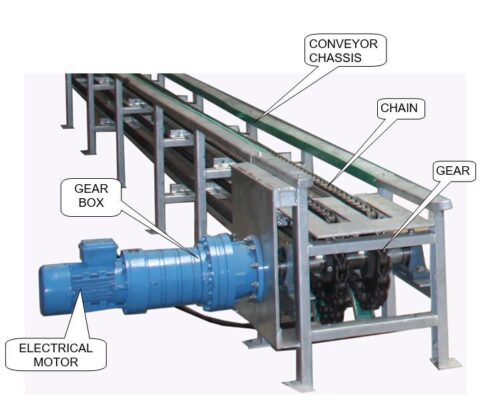

The conveyor drive unit

The conveyor drive unit
is the equipment responsible for moving the conveyor channels that carry the cylinder between the different filling and inspection stages within the system in the most efficient way.

Detail

Explosion-proof motor with a power output of -3 kW (motor power may vary depending on design requirements).

- Shafts, bearings, and power transmission gears and chains.

-CC600 cast iron gears.

- Water reservoir for lubricating conveyor chains.

-Safety machine covers.

-The entire steel structure of the drive unit can be painted or galvanized.

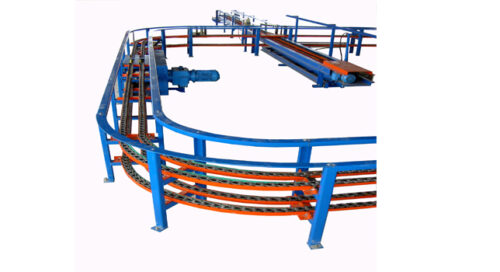

conveyor system

Conveyor systems are used to facilitate the movement of cylinders at different stages in the filling system.

-Comes with riveted chains.

-Height and width can be customized to your needs.

-All chain paths are coated with anti-friction material for lower noise and longer chain life.

BACK

CONVEYOR SYSTEM

CONVEYOR SYSTEM

Conveyor systems are used to facilitate the movement of rollers at different stages of the filling system.

Details

The entire steel structure of the conveyor can be painted or galvanized. It
comes with riveted chains.
The height and width can be designed according to need.
All chain paths are coated with anti-friction material for lower noise and longer chain life.

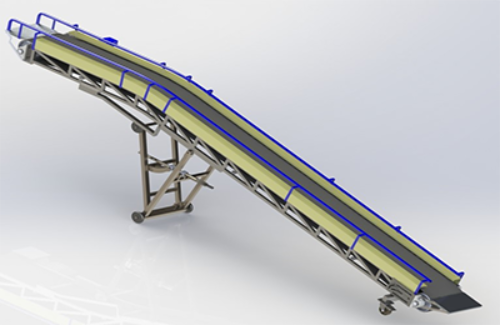

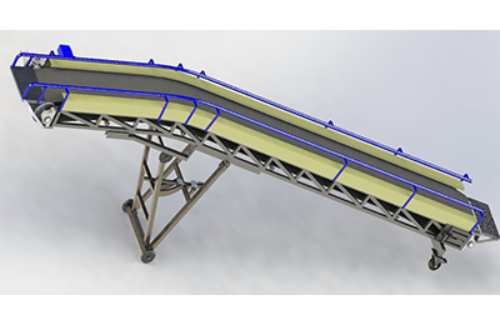

Mobile Conveyor.

Mobile conveyors (belt conveyors) are continuous conveying equipment with high efficiency, transport capabilities, and maneuverability. They are used for unloading bulk materials or individual pieces weighing less than 100 kg in ports, docks, stations, coal depots, warehouses, construction sites, sand and gravel depots, farms, etc. Mobile belt conveyors are divided into two categories: liftable and non-liftable. The movement of the conveyor belt is provided by an electric drum. They are suitable for transporting, stacking, loading, and unloading bulk and packaged grain.

• Adjustable mobile belt conveyor feature. • Suitable for loading and unloading bagged and bulk materials. • Height adjustable with a 6° ~ 30° incline angle. • Can be easily moved anywhere thanks to rubber wheels. • Conveyor length and width are customizable. • Forward and reverse direction function available. • Provides efficient operation for bagged and bulk materials stacked in the warehouse, reducing your labor costs. • Belt conveyor can be used for trough or flat transport. • Can be enclosed to protect against rain if necessary. • Indoor or outdoor application. • Suitable for mining, warehousing, agriculture, medicine, metallurgy, chemistry, etc.

Technical Specifications:

Adjustable height: 1 m ~ 3 m

Conveyor length: 6 m ~ 15 m

Ground clearance: 1 m ~ 3 m

Direction of movement: Two-way

Load capacity: 250 kg

Roller onveyor

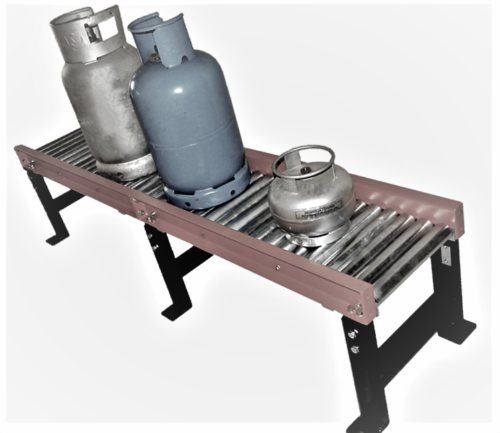

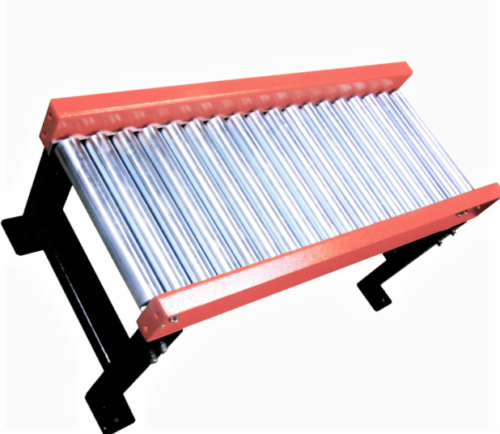

Roller conveyor

With their metallic frame, galvanized rollers and ball bearings, Kaya 's roller conveyors are built for reliability, durability and performance.

Type: KAYA

Metallic frame, Galvanized rollers, Ball bearings
