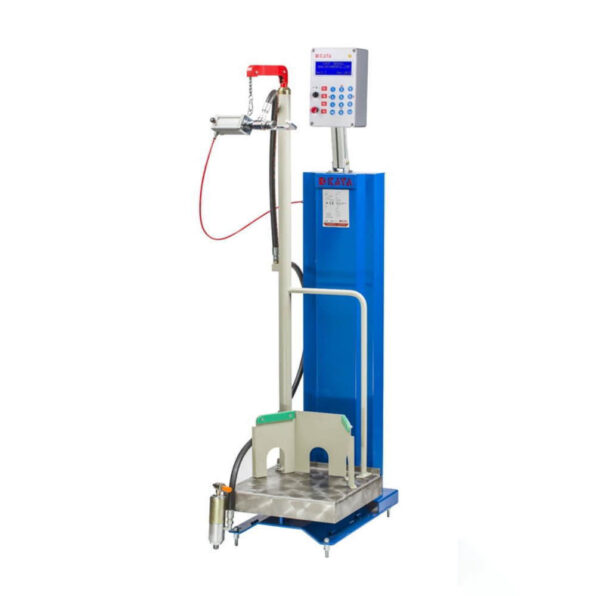

KBE-110 Electronic LPG Cylinders Filling Machine



STAINLESS STEEL PLATFORM
STRONG AND ELECTROSTATIC
PAINT SKELETON
EQUİPPED WİTH CENTERING MECHANISM
FİLLİNG ACCURACY DOES NOT
AFFECTED BY LPG TURBULANCE
İNSİDE THE CYLİNDER
LOW AİR CONSUMPTİON
EASY TO İNSTALL AND USE
CAROUSEL OR FİXED MOUNTING

Scale Weight-Kg
Loadcell Rated Load 350Kg
Loadcell Resistance Load 450Kg
Dimensions 40 x 50 x 120 (cm)
Electiric 220V / Battery Input~12V / DC Exit
Max. Working Temperature +50 °C
Air Pressure 6 – 8 Bar
LPG Pressure Max. 25 Bar
Type Approval T5737
Certificate No LNE-26956
Control System Semi/Full Automatic
Working Position Fixed Mounting / Carousel
