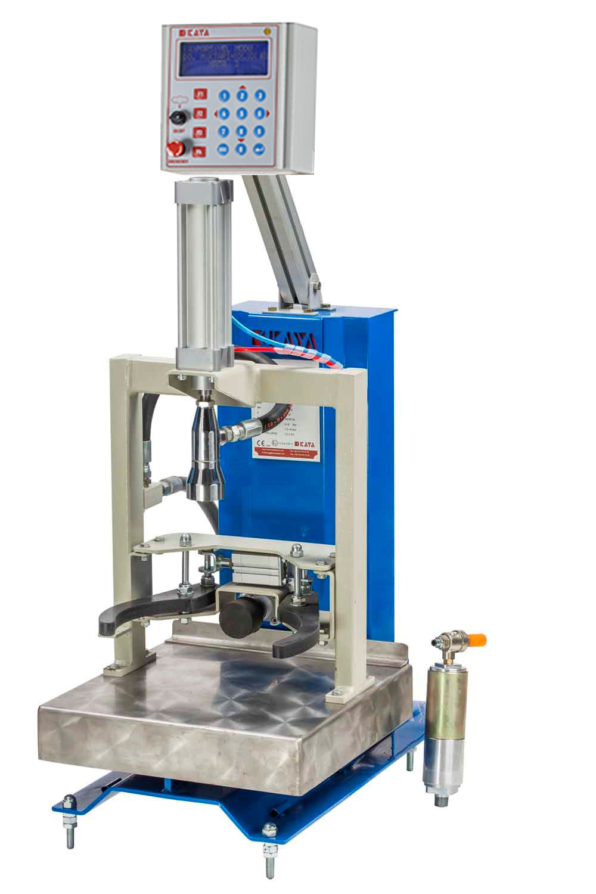

KBE 10 lpg fıllıng scales are used for fıllıng 3 - 5 kg lpg cylınders.
- Suitable for camp cylinders
- Atex certıfıed
- Staınless steel platform
- Strong and electrostatıc paınt skeleton
- Equipped with centerıng mechanısm
- Filling accuracy does not affected by lpg turbulance inside the cylinder
- Low air consumption
- Easy to install and use
- Carousel or fixed mountıng
|
KBE 10 General Specifications |
|
|
Product Code |
|
|
Weighing Sensitivity |
50 Gr |
|
Weighing Capacity |
50 Kg |
|
Scale Weight |
- Kg |
|
Loadcell Rated Load |
300 Kg |
|
Loadcell Resistance Load |
450 Kg |
|
Dimensions |
40 x 55 x 120 (cm) |
|
Electiric |
220V Battery Input~12V DC Exit |
|
Working Temperature |
-20 °C to +50 °C |
|
Air Pressure |
6 - 8 Bar |
|
LPG Pressure |
Max. 25 Bar |
|
Type Approval |
T5737 |
|
Certificate No |
LNE-26956 |
|
Control System |
Semi/Full Automatic |
|
Working Position |
Fixed Mounting / Carousel |
