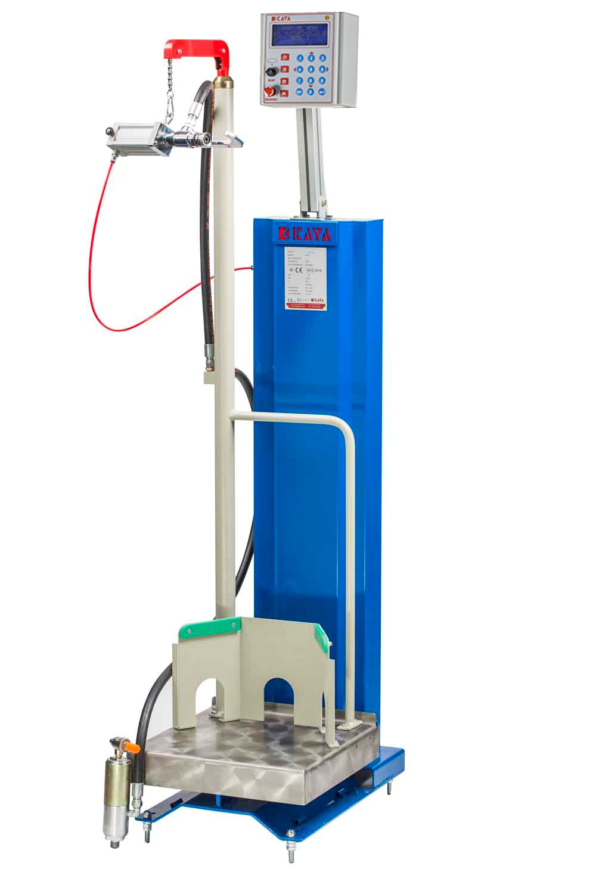

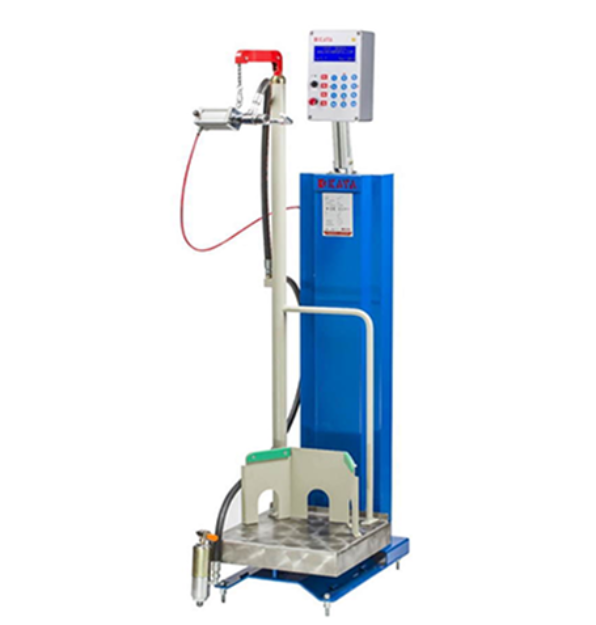

KBE110 lpg filling scales are used for fıllıng 45 kg lpg cylınders.
- domestıc cylinders fıllıng
- confıguered for household cylınders wıth hand wheeled valves
- atex certıfıed
- staınless steel platform
- strong and electrostatıc paınt skeleton
- filling accuracy does not affected by lpg turbulance inside the cylinder
- low air consumption
- easy to install and use
- carousel or fixed mountıng
KBE 110/01 General Specifications | |
Product Code | |
Weighing Sensitivity | 50 Gr |
Weighing Capacity | 150 Kg |
Scale Weight | - Kg |
Loadcell Rated Load | 300 Kg |
Loadcell Resistance Load | 450 Kg |
Dimensions | 45 x 66 x 184 (cm) |
Electiric | 220V Battery İnput~12V DC Exit |
Working Temperature | -20 °C to +50 °C |
Air Pressure | 6 - 8 Bar |
LPG Pressure | Max. 25Bar |
Type Approval | T5737 |
Certificate No | LNE-26956 |
Control System | Manual/Semi Automatic |
Working Position | Fixed Mounting |
