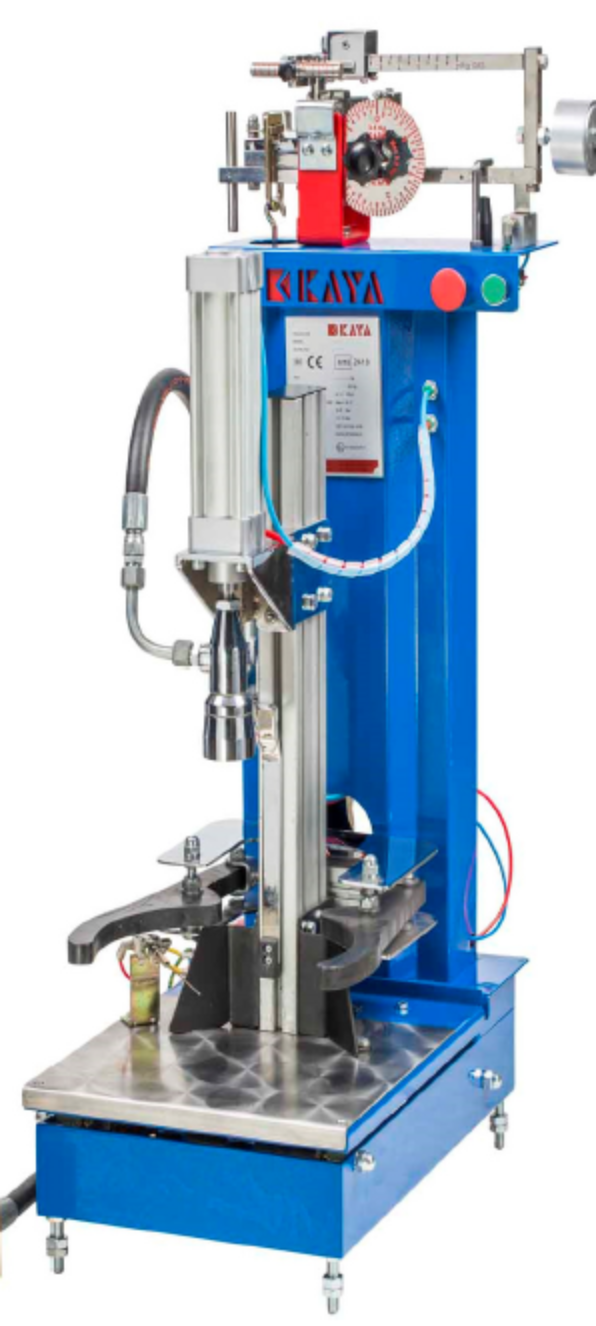

KB 3,5 LPG Fıllıng scales are USED FOR FILLING 0,5 - 1,5 Kg lpg CYLINDERS.

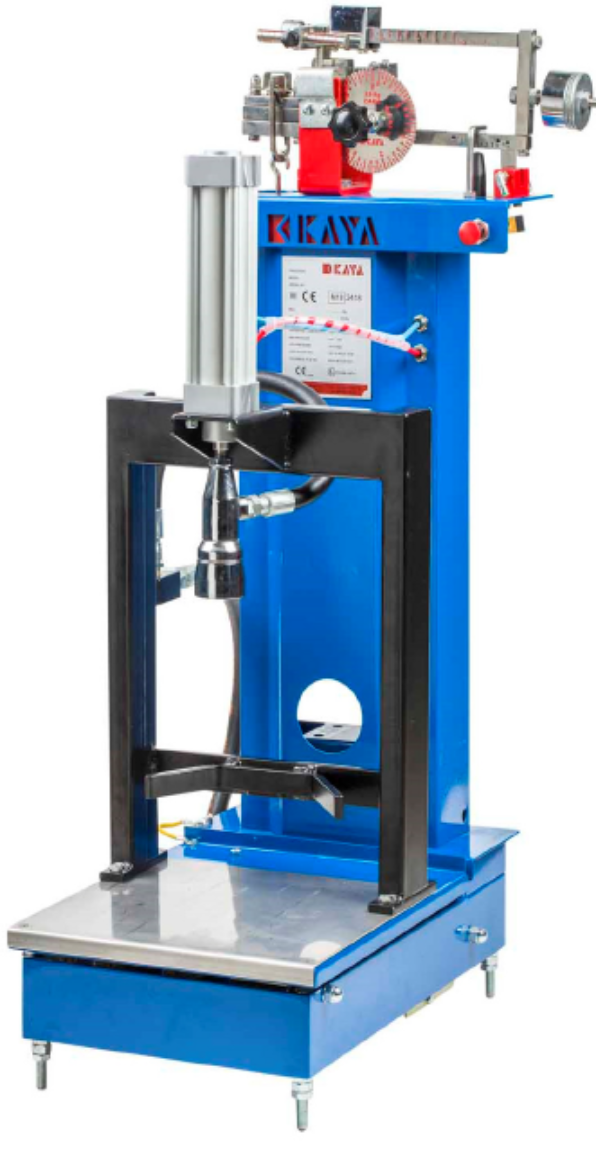

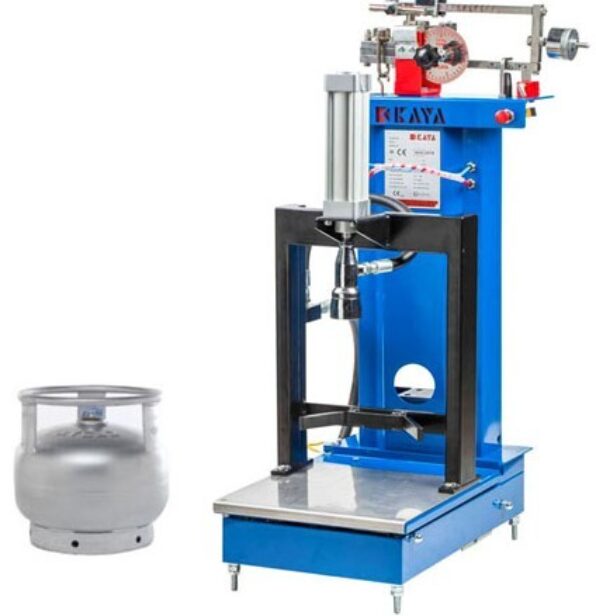

- KB10 lpg fıllıng scales are used for fıllıng 3 - 5 kg lpg cylınders.
- camp cylinders
- atex certıfıed
- staınless steel platform
- strong and electrostatıc paınt skeleton
- equipped with centerıng mechanısm
- filling accuracy does not affected by lpg turbulance inside the cylinder
- low air consumption
- easy to install and use
- carousel or fixed mountıng
KB 3,5 General Specifications | |
Product Code | |
Weighing Sensitivity | 10 Gr |
Weighing Capacity | 3,5 Kg |
Scale Weight | Kg |
Dimensions | 27 x 41 x 77 (cm) |
Max. Working Temperature | +50 °C |
Air Pressure | 6 – 8 Bar |
LPG Pressure | Max. 25 Bar |
Certificate No | IEP 13 ATEX 0179 |
Control System | Manual |
Working Position | Fixed Mounting |
