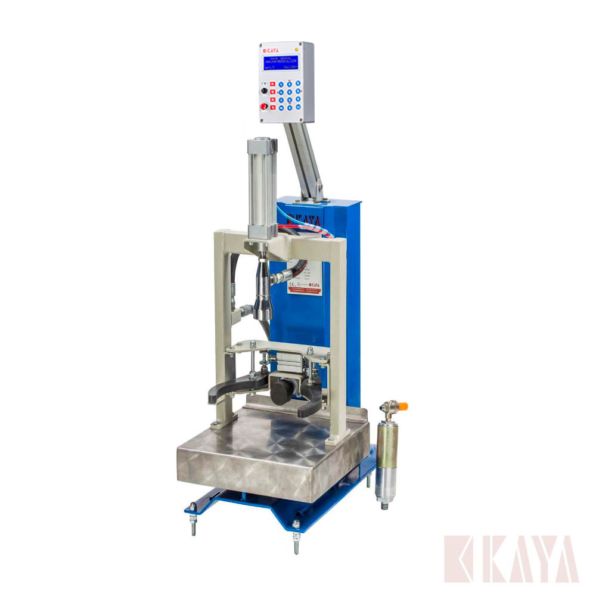

KBE10

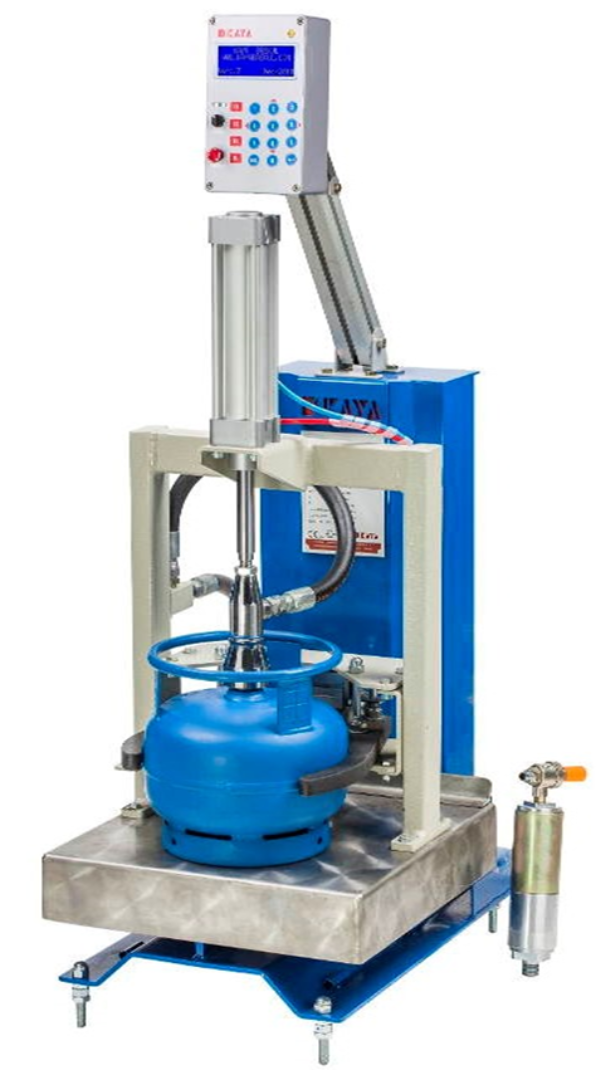

KBE 10 lpg fıllıng scales are used for fıllıng 3 - 5 kg lpg cylınders.

• Suitable for camp cylinders
• Atex certıfıed
• Staınless steel platform
• Strong and electrostatıc paınt skeleton
• Equipped with centerıng mechanısm
• Filling accuracy does not affected by lpg turbulance inside the cylinder
• Low air consumption
• Easy to install and use
• Carousel or fixed mountıng

KBE 10 General Specifications

Product Code

Weighing Sensitivity 50 Gr

Weighing Capacity 50 Kg

Scale Weight - Kg

Loadcell Rated Load 300 Kg

Loadcell Resistance Load 450 Kg

Dimensions 40 x 55 x 120 (cm)

Electiric 220V Battery Input~12V DC Exit

Working Temperature -20 °C to +50 °C

Air Pressure 6 - 8 Bar

LPG Pressure Max. 25 Bar

Type Approval T5737

Certificate No LNE-26956

Control System Semi/Full Automatic

Working Position Fixed Mounting / Carousel
