KBE50

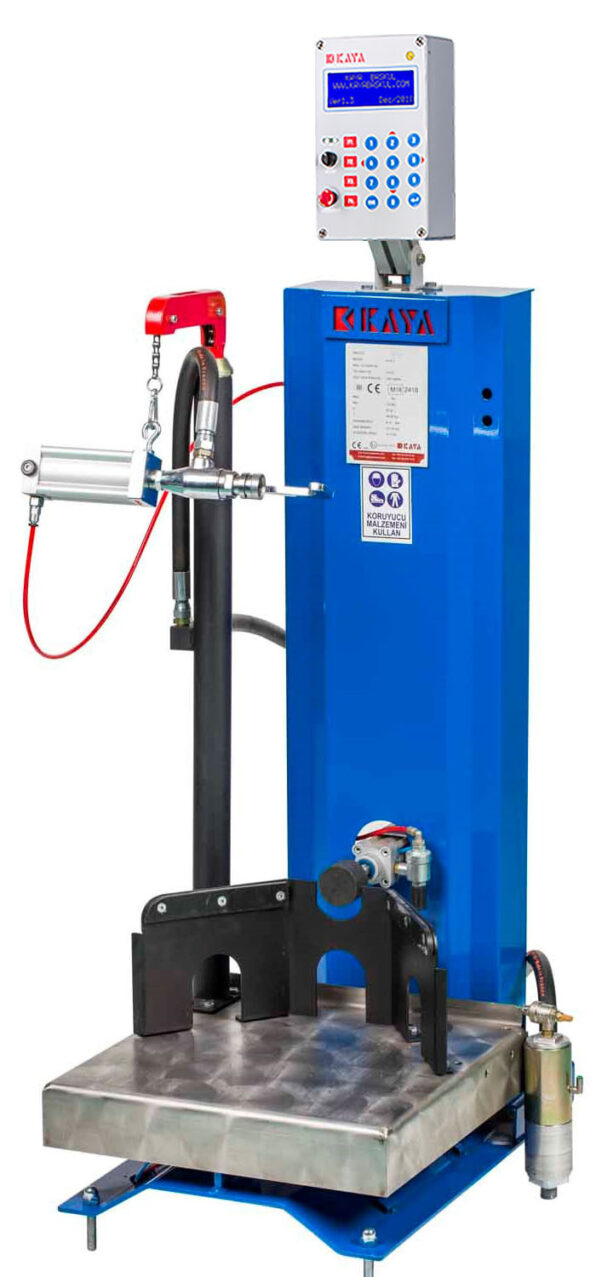

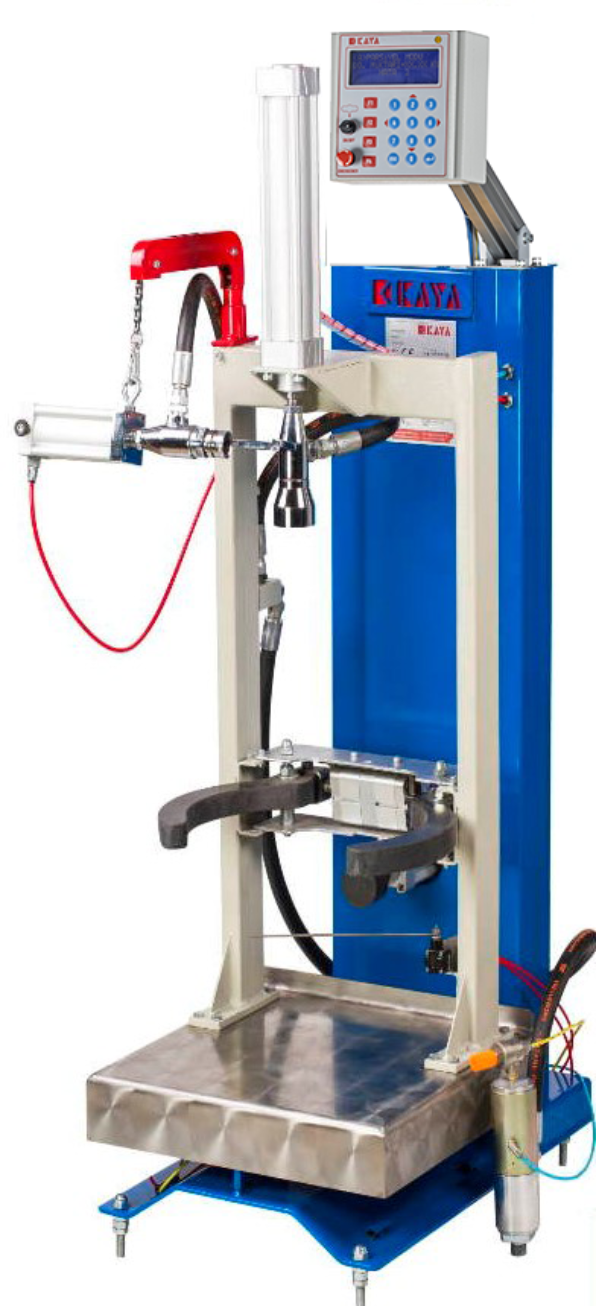

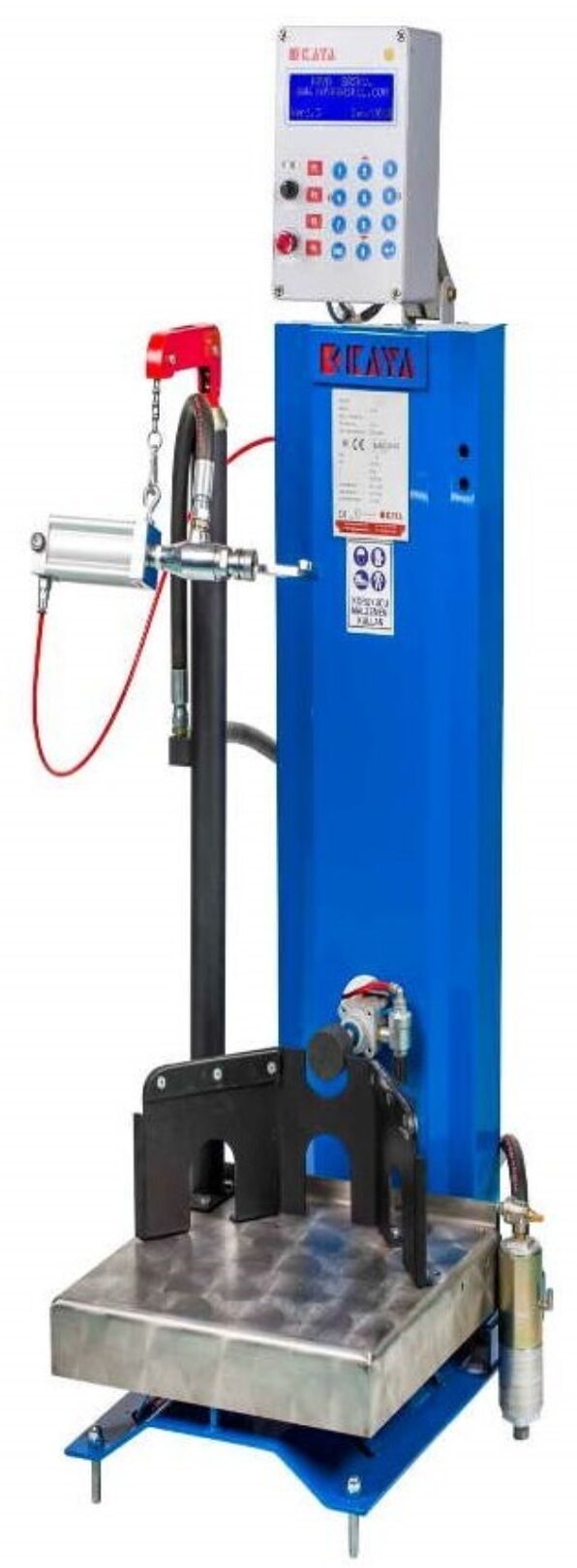

KBE50 LPG filling scale performs gas filling of 12 Kg cylinders.

KBE50 LPG filling scale performs gas filling of 12 Kg cylinders.

  • Domestic cylinder filling
  • configurability for house cylinders with valves
  • atex certified
  • with stainless steel platform
  • robust and electrostatic painted frame
  • It is not affected by LPG turbulence in the Cyl.
  • low air consumption
  • easy to install and use
  • Can be used for carousel or stationary filling
 KBE 50 General Specifications
Product Code
Weighing Sensitivity :50 Gr
Weighing Capacity : 50 Kg
Scale Weight - Kg
Loadcell Rated Load : 300 Kg
Loadcell Resistance Load: 450 Kg
Dimensions :45 x 66 x 140 (cm)
Electiric 220V Battery İnput~12V DC Exit
Working Temperature -20 °C to +50 °C
Air Pressure : 6 - 8 Bar
LPG Pressure Max :. 25 Bar
Type Approval T5737
Certificate No: LNE-26956
Control System Semi/Full Automatic
Working Position Fixed Mounting / Carousel
