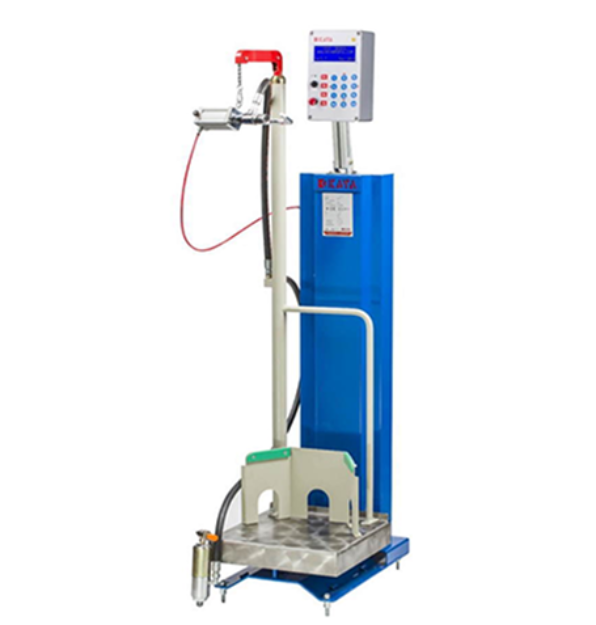

KBE110

KBE50 LPG filling scale performs gas filling of 12 Kg cylinders.

KBE110 lpg filling scales are used for fıllıng 45 kg lpg cylınders.

  • domestıc cylinders fıllıng
  • confıguered for household cylınders wıth hand wheeled valves
  • atex certıfıed
  • staınless steel platform
  • strong and electrostatıc paınt skeleton
  • filling accuracy does not affected by lpg turbulance inside the cylinder
  • low air consumption
  • Easy to install and use
  • Carousel or fixed mountıng
 KBE 110/01 General Specifications
Product Code
Weighing Sensitivity :50 Gr
Weighing Capacity :150 Kg
Scale Weight - Kg
Loadcell Rated Load :300 Kg
Loadcell Resistance Load :450 Kg
Dimensions :45 x 66 x 184 (cm)
Electiric 220V Battery İnput~12V DC Exit
Working Temperature :-20 °C to +50 °C
Air Pressure: 6 - 8 Bar
LPG Pressure Max.: 25Bar
Type Approval : T5737
Certificate No : LNE-26956
Control System Manual/Semi Automatic
Working Position Fixed Mounting
